WATER FLOWMETER

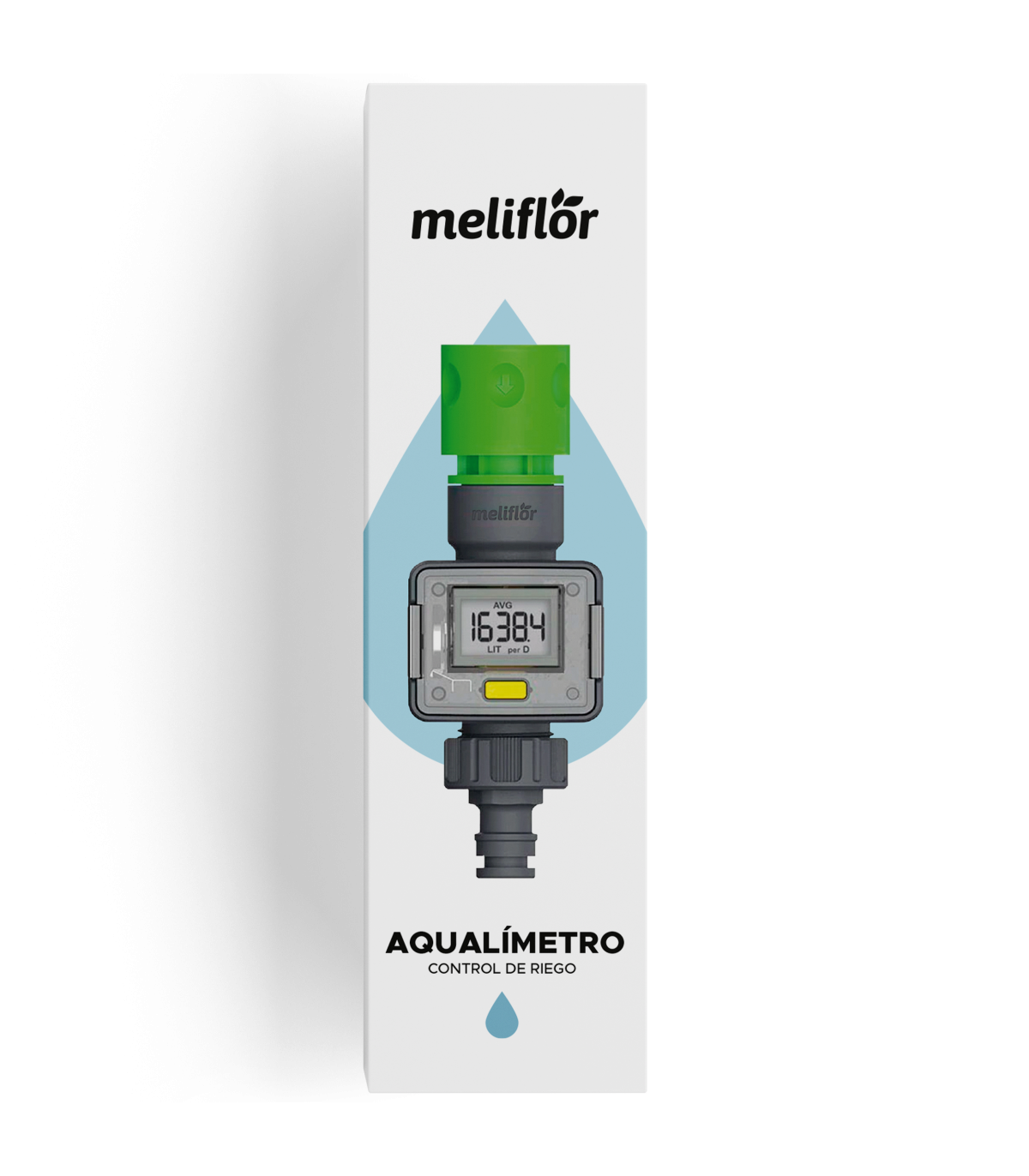

The Meliflor aquameter is delivered pre-assembled and ready for use. It includes a CR2032 battery to power a display screen where you can see the recorded data.

It is made of quality materials that are resistant to rust and corrosion, ensuring it can withstand prolonged contact with fertilizers. At one end, it features a ¾" NH connector to a BSP adapter with a gray thread, also ¾", followed by a metal grid that acts as a filter to prevent any particles from clogging the device. At the other end, another BSP connector to a ¾" wrench.

Its operation is extremely simple and intuitive (instructions inside). It allows data to be read in both liters and gallons.

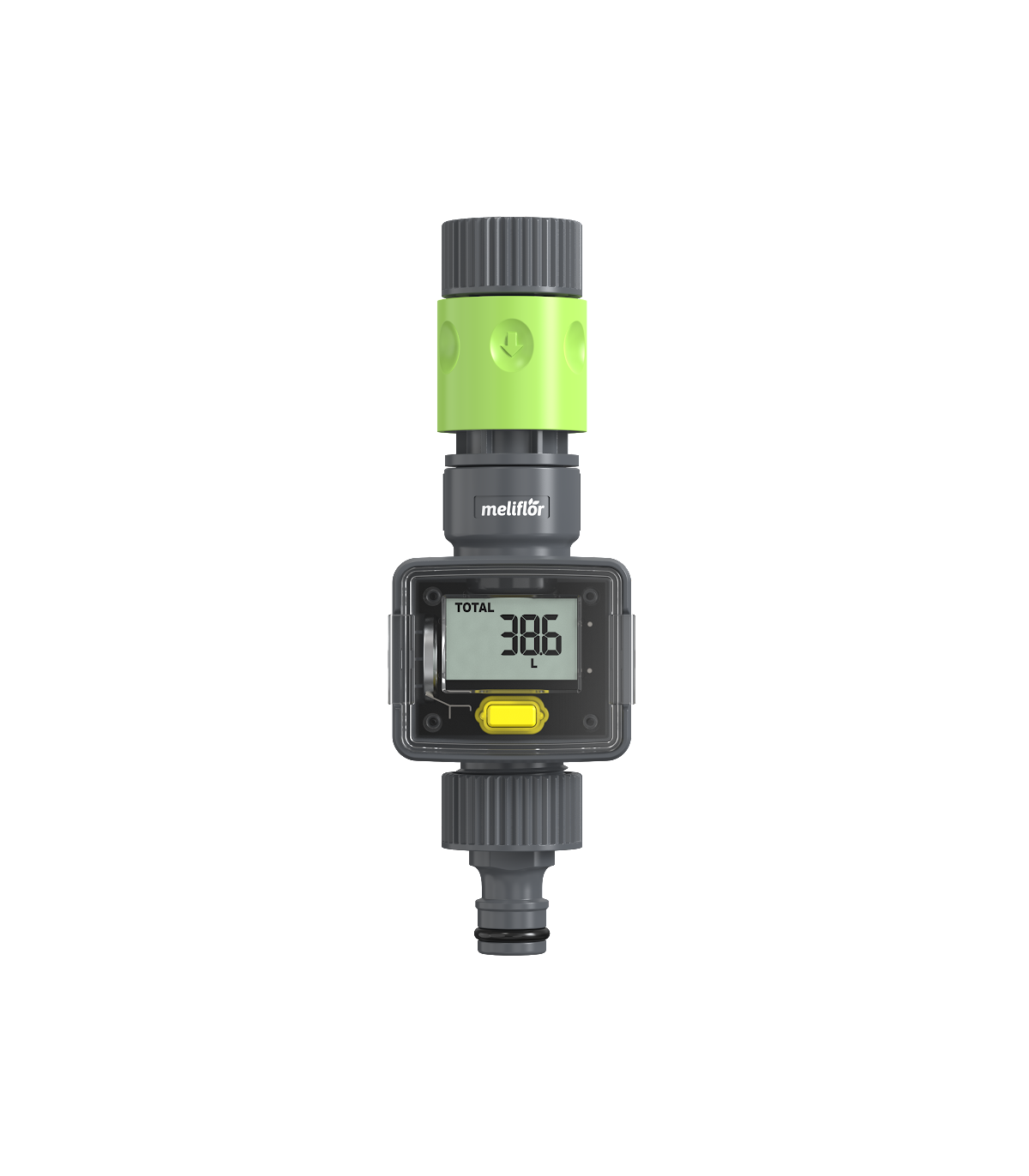

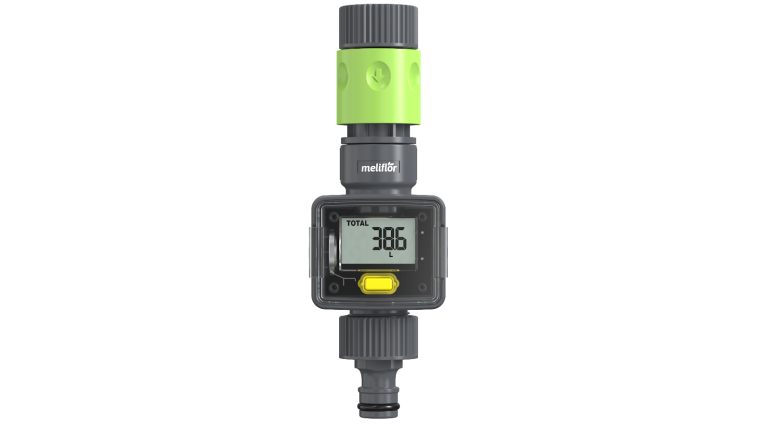

In the center, just below the display, a single yellow button allows you to switch between the four measurement modes:

Flow Mode: Displays the real-time flow of water circulating inside the meter in liters or gallons per minute.

Consumption Mode: Displays total consumption. The measurement resets itself after 30 seconds without water flow or by pressing the button again.

Average Mode: Indicates the average water consumption over the last 7 days.

Total Mode: Displays the total water consumption until reset. It also has a series of special built-in functions, such as the "standby" function, which saves energy by automatically shutting off the unit after 1 minute without water flow or without pressing the mode button. With the reset function, any record can be reset with just one click. Hold the button down for 2 seconds in the selected mode. The measurement resets to zero. Finally, a low battery indicator will appear on the screen before the battery is completely depleted.

Dosage:

Water resistance IPX6

Water flow measurement 1 ~ 40 L/min (0.3 ~ 10.6 GPM)

Measurement range 9,999.9 L or 9,999.9 Gal

Pressure 0.5 bar ~ 8 bar (7.25 ~ 116 PSI)

Maximum flow 2400 L/H (10.6 GPM)

Accuracy level ±5%

Water temperature 5 - 40°C

Compatible with standard ¾" faucets.
